Supermarket Deli & Prepared Food Equipment Guide

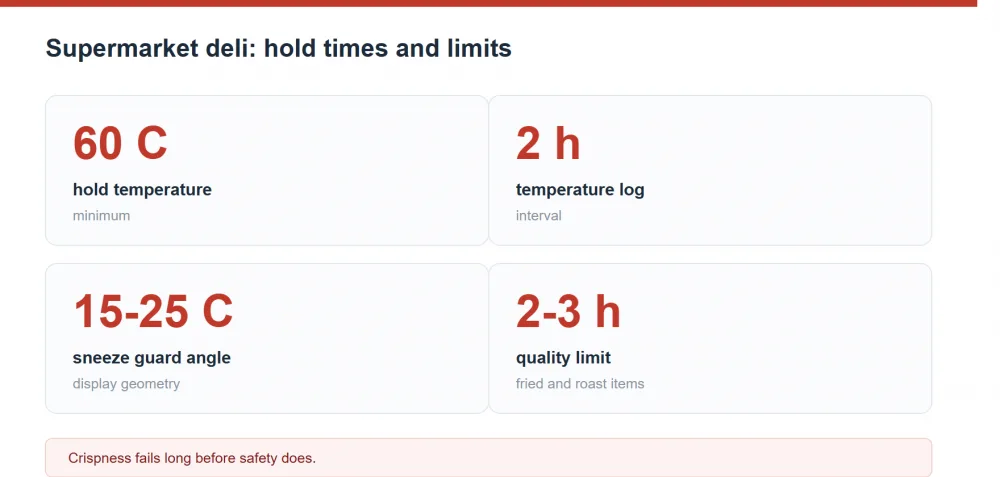

Short answer: supermarket prepared food must hold above 60°C with temperature logged every two hours, be displayed behind a sneeze guard at a 15-25° angle toward the customer, and survive 12-16 hours of daily operation. Discard rules are tighter than in catering because the customer serves themselves over many hours. Hot-holding options suited to this duty are in our heat lamp and chafing dish ranges.
Hold time and discard rules
Retail differs from catering in one important way: the food sits for hours, not minutes. Most operators set an internal discard window shorter than the regulatory maximum.
| Product | Regulatory max hold | Typical retailer policy | Reason for the gap |
| Fried chicken | 4 h | 2 h | Crispness fails first |
| Roast meat, sliced | 4 h | 2-3 h | Drying and colour |
| Rice and noodles | 4 h | 3 h | Texture degradation |
| Soups and sauces | 4 h | 4 h | Stable if covered |
| Prepared vegetables | 4 h | 2 h | Colour and texture |
| Bakery, warmed | 4 h | 4 h | Low risk, low moisture |
Log temperature every two hours at minimum, and label each pan with a production time. Time-based discard is easier to audit than temperature-based discard, and most retailers run both.
Display design for self-service retail
Retail display has to sell as well as hold. Sightlines, lighting and reach distance drive sales more than the menu does.
| Element | Recommendation | Effect |
| Display angle | 15-25° toward customer | Product visible from 2 m |
| Counter height | 90-95 cm | Comfortable reach for adults |
| Reach distance | Under 45 cm from edge | Reduces contamination complaints |
| Sneeze guard | Full width, 45-60 cm high | Required in most jurisdictions |
| Lighting | 300 lux minimum at food | Warm spectrum improves appearance |
| Signage | Price, allergen, production time | Required and drives conversion |
| Lamp height | 45-60 cm above product | Holds 60-70°C at surface |
Equipment duty cycle
Retail equipment runs 12-16 hours daily, seven days a week, which is roughly triple the duty cycle of a hotel buffet. That changes what "commercial grade" means.
| Component | Catering duty | Retail duty | Specification |
| Heating element | 2-4 h per day | 12-16 h per day | Continuous-duty rating |
| Bulbs (lamps) | 2-4 h per day | 12-16 h per day | Plan quarterly replacement |
| Lid hinges | 50 cycles per day | 300+ cycles per day | Heavy-duty or lift-off |
| Pans | 1-2 washes per day | 3-4 washes per day | 304, thicker gauge |
| Finish | Appearance matters | Cleanability matters | Brushed, not mirror |
Bulb and element replacement should be planned as a scheduled consumable, not treated as a breakdown. At 14 hours a day, a 5,000-hour bulb lasts under a year.
Reducing shrink on prepared food
Prepared food is high margin and high waste. The equipment choices below directly affect shrink, which typically runs 8-15% of prepared food production.
| Leak | Typical loss | Equipment or process response |
| Over-production late day | 4-7% | Smaller pans after 19:00 |
| Quality discard before sell-by | 2-4% | Lamp height corrected, covers used |
| Customer self-serve spillage | 1-2% | Angled displays, deeper pans |
| Temperature failure | 1-3% | Two-hour logging with alarms |
| Poor display visibility | Indirect, 3-5% of sales | Risers, lighting at 300 lux |
Correcting lamp height alone often recovers 1-2 points of shrink, because the most common cause of early discard is surface drying from a lamp mounted too close rather than any failure of the food itself.
Planning a prepared food counter
Counter length determines how many products can be displayed, and therefore how much can be sold. Plan the counter by product category before choosing equipment.
| Zone | Counter share | Equipment | Notes |
| Hot fried and roasted | 30% | Lamps or open hot case | Highest margin, shortest hold |
| Hot sides and sauces | 20% | Chafers with lids | Longer hold, covered |
| Soup and liquid | 10% | Soup kettle or chafer | Stable if covered |
| Cold prepared | 25% | Chilled display | Cold chain is the risk |
| Bakery and pastry | 15% | Risers, ambient display | No holding needed |
Allocate the largest share to the shortest-hold products. Fried items sell fastest and lose quality fastest, so they need both the most space and the most attention.
Frequently Asked Questions
How long can prepared food be hot-held in a supermarket?
Regulatory maximum is four hours without active temperature control, but most retailers set a two to three hour policy because quality fails before safety does.
Do I need a sneeze guard on a hot case?
Yes, for any customer self-service. Height is typically 45-60 cm above the counter, and the requirement is enforced in most jurisdictions.
Are heat lamps better than chafers for retail?
Lamps for crisp products such as fried chicken and pastry; chafers for anything with sauce or moisture. Many delis run both on the same counter.
How often should I log temperatures?
Every two hours as standard, and hourly during hot weather or when the ambient temperature in the store rises above 25°C.
What is the most common compliance failure?
Missing discard labels. The food may be perfectly held, but without a production time recorded the whole pan is considered unverifiable.
