GN 1/1 vs GN 1/2 Food Pans: Which Should Your Buffet Use?

Short answer: use GN 1/1 (530 x 325 mm, 8.8 L) for entrees that serve 25-30 guests per pan, and GN 1/2 (265 x 325 mm, 4.0 L) for sides, or when you want two dishes in one full-size frame. Half-size pans let one chafer serve two items, which is the usual reason to choose them. Both fit standard chafing dish frames that follow the EN 631 modular system.

Capacity and fit compared

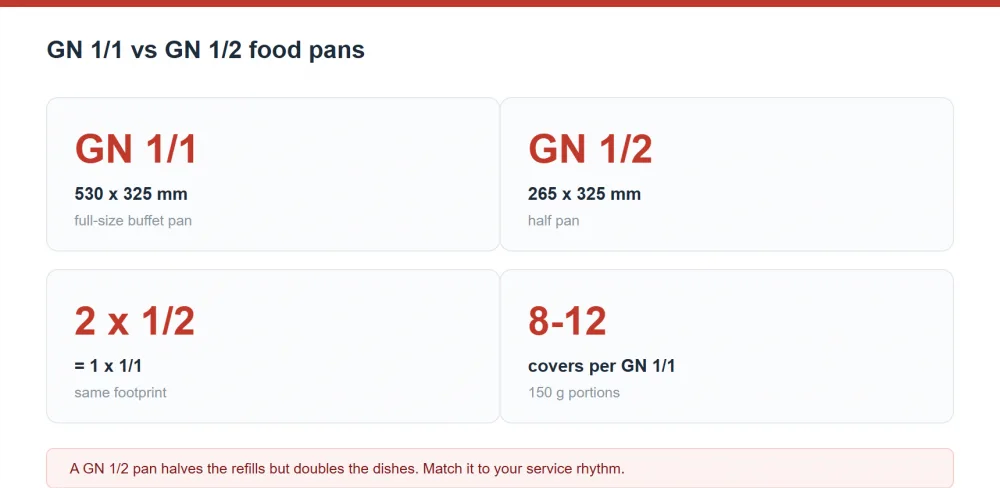

The two sizes are designed to work together: two GN 1/2 pans occupy exactly the footprint of one GN 1/1. That modularity is the whole point of the Gastronorm system.

Specification	GN 1/1	GN 1/2	Practical difference
Dimensions	530 x 325 mm	265 x 325 mm	Exactly half the width
Volume at 65 mm	8.8 L	4.0 L	Slightly less than half due to wall taper
Portions at 100 g	45-50	20-22	Two half pans give slightly fewer total portions
Per full-size frame	1	2	Or one of each with a divider
Preheat energy	Higher	Lower	Half pans heat faster
Handling weight when full	9-12 kg	4-6 kg	Safer for staff to carry

Note the taper effect: two half-size pans together hold slightly less than one full-size pan, because each has its own walls. The difference is around 8%, which matters only when calculating precisely for large volumes.

Weight is the practical argument many operators overlook. A full GN 1/1 at 65 mm with food weighs 9-12 kg, which is an awkward lift from a chafer to a trolley, especially at shoulder height above a hot water pan.

Choosing by menu position

Match pan size to how fast the item turns and how much choice you need, rather than using one size throughout.

Menu position	Recommended pan	Reason
Primary entree	GN 1/1	Volume matches demand
Secondary entree	GN 1/1 or 1/2	Depends on expected split
Starch and vegetables	GN 1/2	Smaller portions taken
Breakfast bacon or eggs	GN 1/2 at 40 mm	Shallower, faster refresh
Condiments and garnishes	GN 1/6 or 1/9	Fraction pans suit small items
Late-service top-ups	GN 1/2	Reduces waste at close

The late-service argument is the strongest financial case for half pans. Switching to half-size pans for the final hour typically cuts over-production waste by 2-4 percentage points without any guest noticing a difference.

Depth, material and compatibility

Size is only one of three choices. Depth and material matter just as much for how the food actually holds.

Choice	Recommendation	Why
Depth for entrees	65 mm	Standard, matches 8-quart chafers
Depth for sides	40 mm	Less thermal mass, faster heating
Depth for soups	100-150 mm	Volume and splash control
Material	304 stainless	Even heating, survives washing
Perforated pans	For steamed vegetables	Prevents waterlogging
Divider bars	When splitting a frame	Stops pans sliding in service

Always use a divider bar when running two half pans in one frame. Without one, pans slide as guests serve themselves and can tip water into the food or spill onto the table.

Pan depth: how it changes yield and rethermalisation

Width and length decide whether a pan fits the frame. Depth decides how much you can serve before a refill and how evenly the food re-heats. A shallow pan warms through quickly and holds food in a thin layer that stays close to the water temperature; a deep pan holds more portions but the centre lags, so operators frequently stir or rotate stock from the bottom.

Nominal depth	GN 1/1 capacity	GN 1/2 capacity	Best use	Refill rhythm at 60 guests/hr
65 mm	5.4 L	2.4 L	Sautéed vegetables, bacon, scrambled egg	Every 20-25 min
100 mm	8.8 L	4.0 L	Standard hot entrees, rice, pasta	Every 30-40 min
150 mm	13.0 L	5.9 L	Soups, stews, braised meats	Every 45-60 min
200 mm	17.6 L	8.0 L	Bulk holding, batch cooking, back-of-house staging	Every 60-90 min

As a working rule, keep the food layer at 60-80 mm. Anything deeper sits below the safe holding band even when the water pan is full, and anything shallower dries out within 20 minutes. If you need more volume, add a second pan rather than a deeper one.

Frequently Asked Questions

Do two GN 1/2 pans hold as much as one GN 1/1?

Slightly less, around 8%, because each pan has its own walls. For planning purposes, treat two half pans as roughly 7.6 L against 8.8 L for a full pan.

Can I mix a GN 1/2 and two GN 1/4 in one frame?

Yes, that is exactly what the modular system is designed for. Any combination of fractions that adds to a full footprint will fit.

Which size heats faster?

Half-size, because there is less mass and less water to bring to temperature. Expect roughly 30-40% faster preheat for two half pans versus one full pan.
