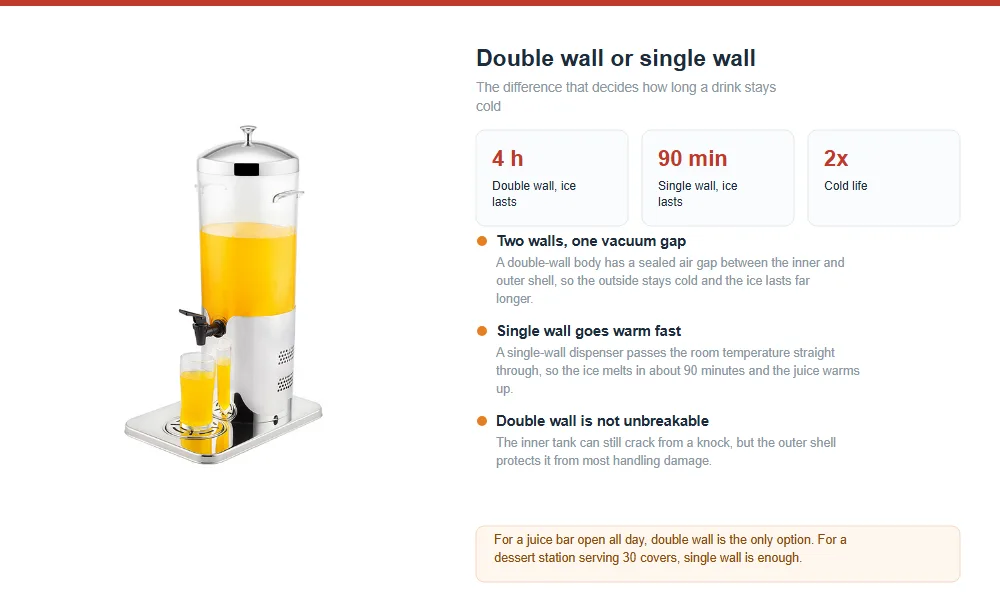

Double-Wall vs Single-Wall Beverage Dispensers: Which Holds Better

Short answer: a double-wall insulated dispenser holds below 5°C for 3-5 hours without any power, against 1-2 hours for a single-wall tank. Choose double-wall for receptions, outdoor service and anywhere without a refrigerated base; choose single-wall where the unit sits on a chilled base or is refilled continuously. Options across both types are in our beverage dispenser range.

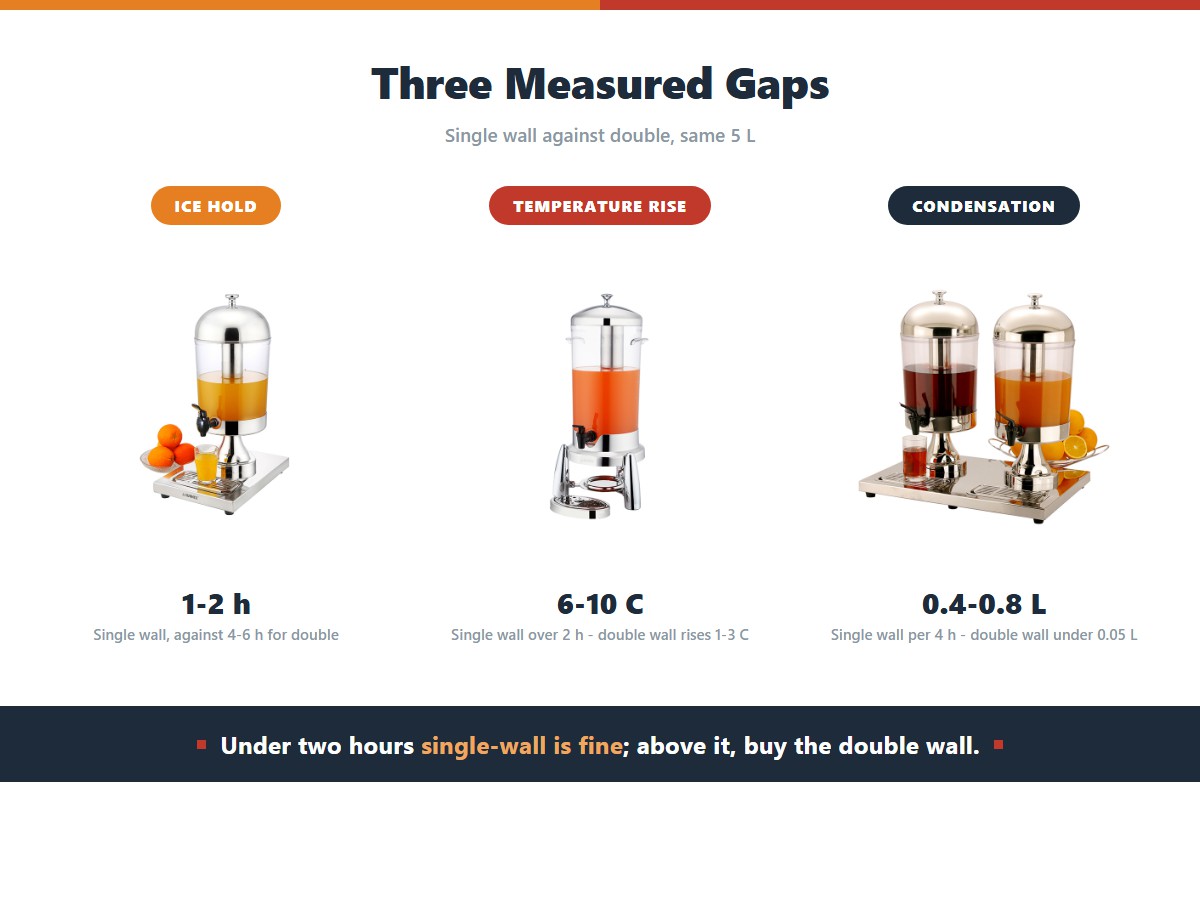

Thermal performance compared

Insulation changes how long the product stays safe, which is the whole point. The difference is measured in hours rather than degrees.

Insulation helps in both directions, which is easy to forget. A double-wall tank holds hot drinks above 60°C for two to three hours without a heating element, which suits receptions and breaks.

The practical limit for any unpowered dispenser is the two-hour check cycle. Even with excellent insulation, temperature must be logged and the product rotated or replaced when it drifts out of the safe band.

Cost, weight and cleaning

Insulation adds cost, weight and bulk. Those trade-offs are worth understanding before specifying a fleet.

Condensation is the visible difference guests notice. A single-wall tank of iced juice sweats continuously, leaving puddles on the counter, while a double-wall tank stays dry.

Note the capacity trade-off: a double-wall 5 L tank occupies the footprint of a 6-7 L single-wall tank. If counter space is tight, that difference matters more than the insulation.

Choosing by service pattern

The service pattern determines whether insulation is worth paying for. Match the specification to how the dispenser will actually be used.

For permanent installations with a refrigerated base, insulation is largely wasted cost. For anything mobile or unpowered, it is the difference between a safe product and a discarded one.

Condensation, weight and what insulation does to service

Insulation is not only about temperature. The outer wall of a single-wall tank sits below the dew point whenever the room is warm, so the outside sweats continuously and the base leaves a ring on the counter. Double-wall construction removes that problem, but it adds weight and reduces the visible product column.

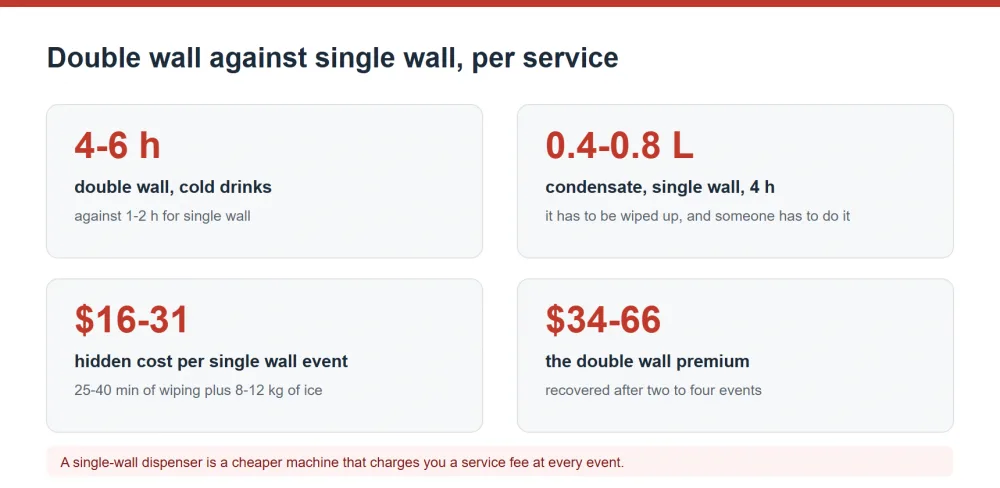

If you choose a single-wall tank, budget staff time for the ice jacket: roughly 2 kg of ice per 5 L per hour of service in a warm room, plus wiping the counter every 30 minutes. That labour cost often closes the price gap with an insulated unit within one season.

Frequently Asked Questions

How long does an insulated dispenser keep drinks cold?

Three to five hours below 5°C if pre-chilled and kept out of direct sun. Add ice and it extends further, at the cost of dilution.

Does insulation matter if I use a refrigerated base?

Much less. The base maintains temperature, so a single-wall tank gives more capacity for the same footprint and costs less.

Are insulated dispensers harder to clean?

Not significantly, provided the seams are welded smooth. Check that the inner tank can be fully drained and wiped.

Can I put hot drinks in an insulated dispenser?

Yes, and it works well: above 60°C for two to three hours. Confirm the seals and taps are rated for the temperature.

Is condensation a real problem?

Yes. Single-wall tanks with iced product leave standing water on counters, which is both a slip risk and a hygiene issue.
