Ceiling-Mounted vs Countertop Food Heat Lamps: Which to Install

Short answer: install a ceiling-mounted heat lamp when the station is permanent and counter space is tight — mount it 60–90 cm (24–36 in) above the food with 2 × 250–275 W heads for a 1,200 × 800 mm area. Choose a countertop unit when the layout changes weekly. Both types are covered in commercial heat lamps.

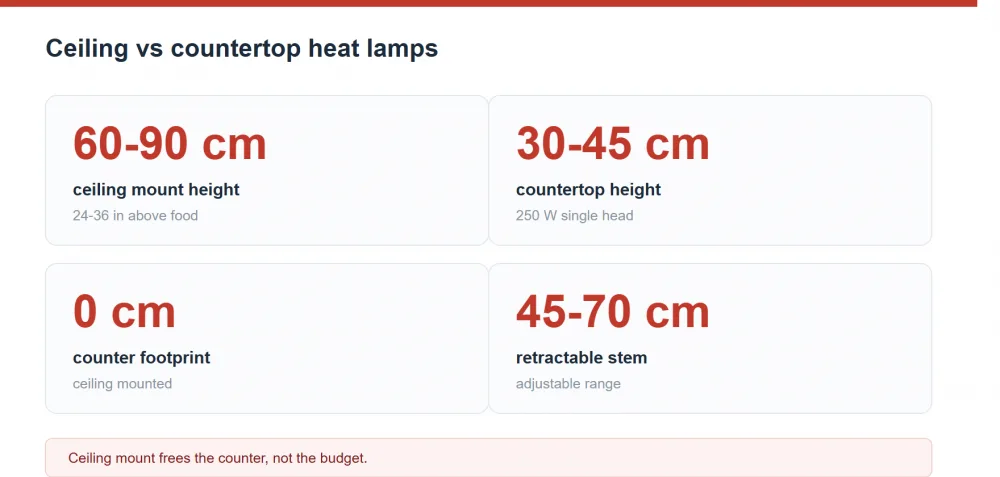

Three mounting options

TypeHeight rangeCounter space usedBest for
Countertop / freestanding30–45 cm250–350 mm footprintPop-up stations, temporary lines
Retractable stem45–70 cm adjustableBase only, 200 mmMixed menus, changing portion heights
Ceiling-mounted hanging lamp60–90 cm fixed or cord-adjustedNonePermanent carving and banquet counters

Installation numbers that matter

  • Mounting height: 60–90 cm for ceiling units, 30–45 cm for countertop 250 W units.
  • Clearance to combustibles: keep at least 300 mm between the shade and any drape, signage or napkin stack.
  • Head spacing: roughly one 250 W head per 500–600 mm of line so coverage overlaps slightly.
  • Electrical: ceiling units are hard-wired; plan a switched circuit per pair of heads.
  • Cleaning height: allow for the unit to be wiped weekly — above 2.1 m that becomes a maintenance task nobody does.

Why stainless housings

Ceiling fixtures live in steam, grease and cleaning chemicals. A stainless steel housing with a polished aluminium reflector resists corrosion better than painted steel, which chalks and flakes above a hot line. Specify 304 (not 201) and a shatter-resistant bulb so nothing can fall into open food below.

Getting the height right on site

  1. Set the nominal height, then place a tray of representative food underneath.
  2. Run for 20 minutes and measure the food surface temperature.
  3. Adjust in 5 cm steps: hotter than 165°F (74°C) means raise it; below 140°F (60°C) means lower it or add wattage.
  4. Lock the setting and write it into the station setup card.

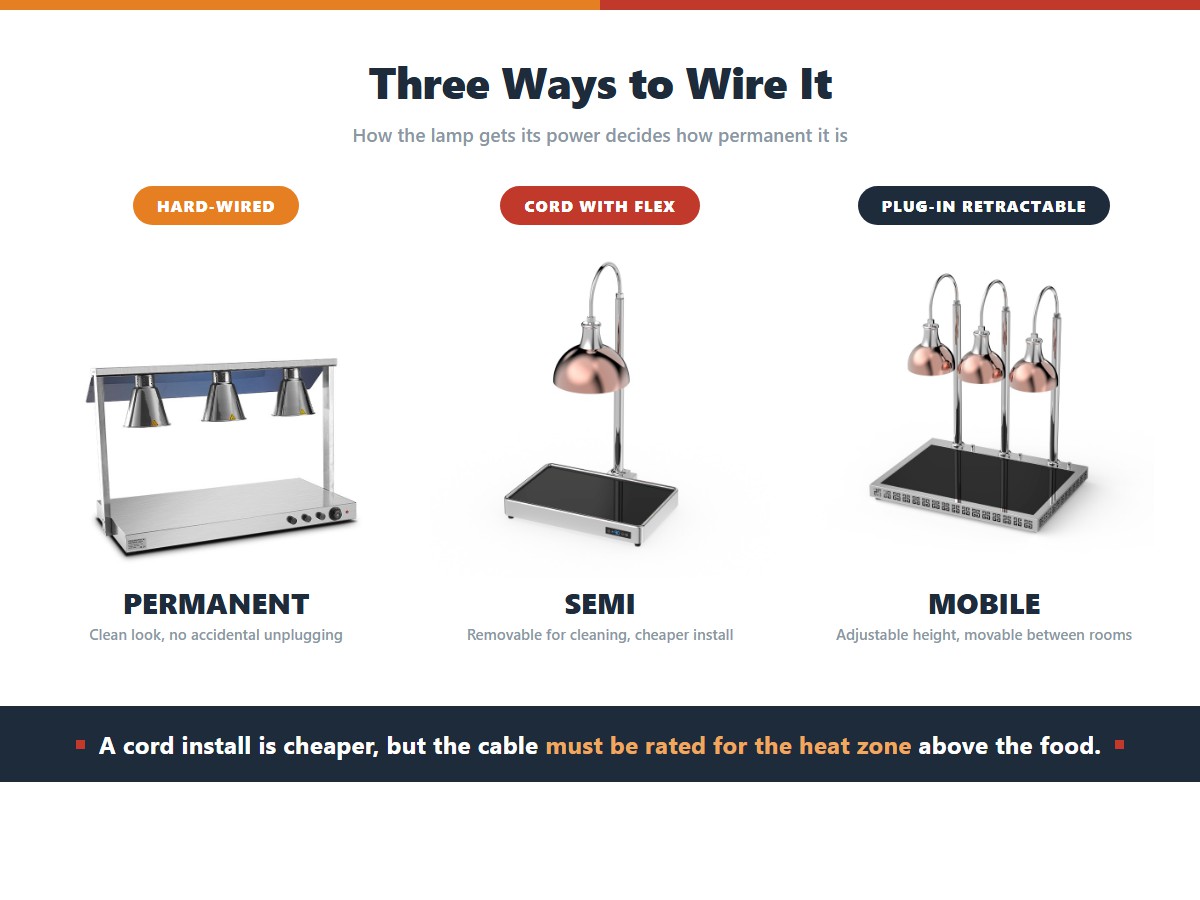

Hard-wired or plug-in?

OptionProsConsBest for
Hard-wired to a switched circuitClean look, no visible cable, no accidental unpluggingNeeds an electrician for any changePermanent installations
Cord with flex and socketRemovable for cleaning, cheaper installCable management; cord must be rated for the heat zoneSemi-permanent lines
Plug-in retractable unitAdjustable height, movableSlightly lower duty cycle ratingMulti-purpose rooms

Whichever you specify, keep a switched isolator accessible to staff — a lamp that cannot be switched off at the wall during cleaning never gets cleaned properly.

Maintenance at height

  • Weekly wipe of the reflector with a non-abrasive cloth; dust on the reflector cuts output measurably.
  • Monthly check that all fixings are tight — vibration from nearby equipment loosens ceiling mounts.
  • Quarterly bulb rotation: replace all bulbs in a cluster at once rather than one at a time, so output stays even.
  • Record service dates on a tag fixed to the flex, which is the only place anybody looks.

Plan a safe access method before installation. If reaching the lamp requires balancing on a counter, it will not be cleaned, and output will drift down unnoticed over the following year.

Bottom line: choose by permanence

  • Permanent station, tight counter, fixed menu: ceiling-mounted cluster at 60–90 cm.
  • Multi-purpose room: retractable stem lamp that adjusts 45–70 cm.
  • Changing layouts and off-site work: countertop unit at 30–45 cm, moved as needed.
  • Always: stainless housing, shatter-resistant bulbs, switched isolator and 300 mm combustible clearance.

Installation decisions are hard to reverse, so specify height adjustability even when you think you will not need it — most stations change their menu before they change their furniture.

Getting the installation signed off

  1. Confirm the ceiling structure can carry the fixture — typically 3–6 kg for a double-head unit plus its mounting.
  2. Set the mounting height from the finished countertop, not the raw floor slab.
  3. Verify clearance to any sprinkler head, signage or extraction canopy before drilling.
  4. Commission with food on the counter and record the surface temperature at 30 and 60 minutes.
  5. Update the station setup card with the final height and turn the isolator off before staff clean.

Record the commissioning figures; they are the baseline you compare against a year later when the line feels cooler than it used to.

Frequently Asked Questions

How high should a ceiling heat lamp hang above food?

60–90 cm (24–36 in) for fixed ceiling units, verified by food surface temperature rather than by eye.

Can I hang a heat lamp over a chafing dish?

Yes, if there is clearance for the lid to open. Check the full open arc of a roll-top lid, usually 350–400 mm, before fixing the mounting height.

Do ceiling-mounted lamps need special wiring?

They are normally hard-wired to a switched circuit sized for the connected load — about 2.1 A at 120 V per 250 W head, or 1.1 A at 230 V.

Is stainless better than painted steel for the housing?

Yes. Over a buffet line, painted steel chalks and rusts from steam and sanitiser mist; 304 stainless simply wipes clean.

What about retractable models?

Retractable ceiling units give most of the space saving with adjustable height, making them the safest single choice for multi-purpose rooms.
