How Many Watts Do You Need for a Food Heat Lamp?

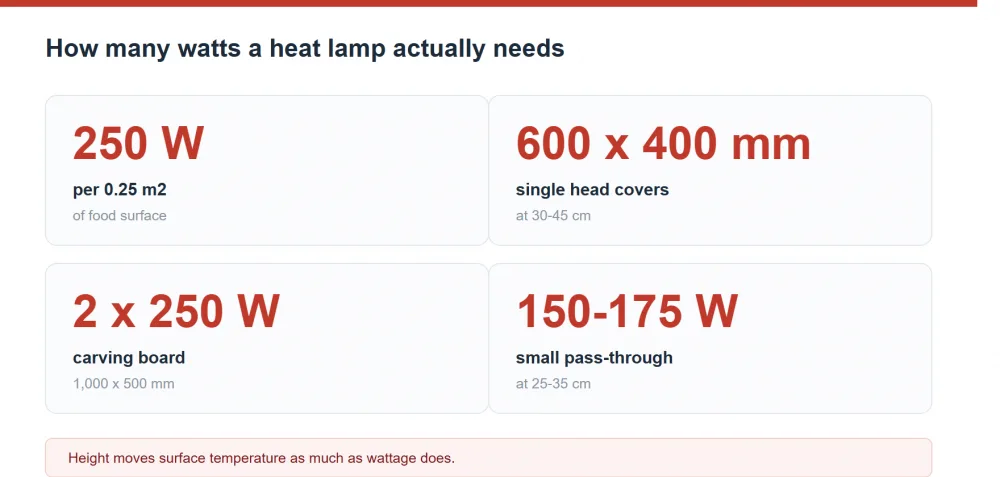

Short answer: budget roughly 250 W for every 0.25 m² of food surface. One 250 W head covers a standard 600 × 400 mm pan from 30–45 cm (12–18 in); a carving board around 1,000 × 500 mm needs two 250–275 W heads mounted 40–50 cm high. Compare configurations in food heat lamps.

Wattage selection table

Why height matters as much as wattage

Radiant intensity falls roughly with the square of distance: moving a lamp from 30 cm to 45 cm halves the intensity at the food surface. That is why the fix for dried-out food is usually raising the lamp rather than buying a lower-wattage bulb, and the fix for cold food is usually raising wattage rather than dropping the lamp closer.

Circuit planning

On 220–240 V supplies the per-circuit count roughly doubles, but always confirm the plate voltage before shipping; units built for 110 V cannot simply be plugged into 230 V.

Bulb choice changes effective wattage

• Clear bulb: maximum radiant output, shortest warm-up, most glare.
• Red or coated bulb: similar heat with noticeably less glare — better in front-of-house.
• Shatter-resistant PTFE bulb: mandatory over open food in most codes; output is a few percent lower.
• Polished aluminium reflector: recovers 20–30% of upward radiation, so the same wattage delivers more heat downward.

Zoned switching saves real money

A banquet line rarely needs full wattage all evening. Splitting heads onto separate switches lets you run one zone during quiet service and add the second only at peak.

Over a year the saving is modest in absolute terms, but it also reduces how much product dries out during slow periods, which is usually the larger commercial effect.

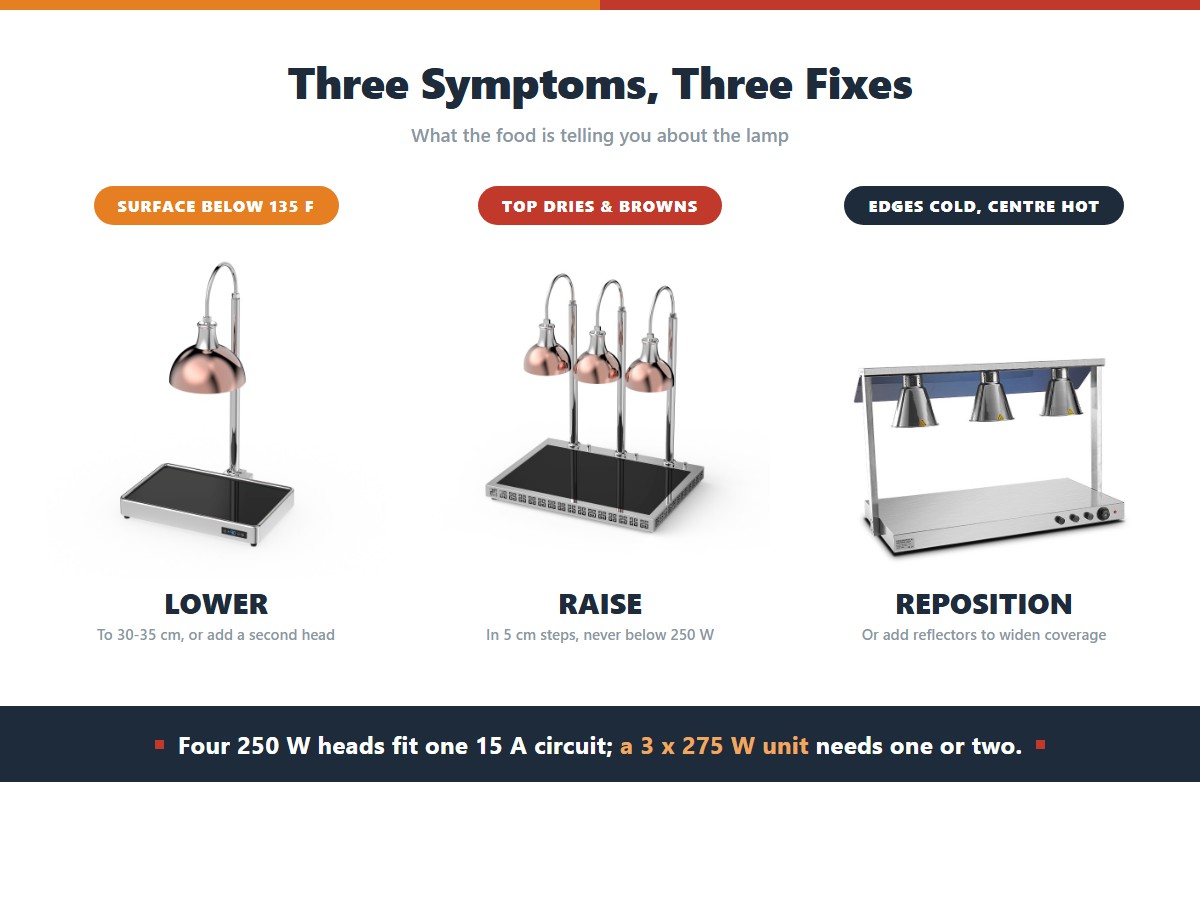

Troubleshooting the common problems

Bottom line: the wattage rule in three lines

• 250 W covers one standard 600 × 400 mm pan from 30–45 cm.
• Two heads cover a 1,000 × 500 mm carving board from 40–50 cm.
• Adjust by measuring — if the surface is under 135°F (57°C) add wattage or lower the lamp; if it dries, raise the lamp.

Include this rule in every station setup card. Most under-heated buffet lines are not under-equipped, they are mis-set, and a five-minute adjustment with a probe fixes them permanently.

Specifying on a purchase order

Write these four lines into your equipment specification and you will get what you actually need:

1. Wattage per head (250 W or 275 W) and the number of heads per fixture.
2. Coverage area the supplier guarantees, in millimetres, at a stated mounting height.
3. Surface temperature achieved — usually stated as 140–165°F (60–74°C) measured on a reference plate at 30 minutes.
4. Voltage and plug type for the destination market, plus the bulb type specified (shatter-resistant where required).

Suppliers can meet all four easily; the point is that unstated assumptions are where mismatched equipment comes from.

Frequently Asked Questions

What wattage heat lamp do restaurants use?

250 W single heads are the industry standard for countertop holding, with 2 × 250 W or 275 W heads for carving stations and larger banquet displays.

Is a higher wattage always better?

Not always. Higher wattage lets you mount higher and cover more area, but too much too close dries surfaces quickly. Match watts to the area, then adjust height by measuring food surface temperature.

How many watts per serving pan?

Around 250 W per single GN 1/1 pan at 30–45 cm. If two pans sit side by side, either use two heads or one double-head unit.

Can I use a lower wattage bulb to save energy?

Yes if the food still holds 135°F (57°C) or above — verify with a probe, because underpowered stations sit in the danger zone without looking wrong.

Do I need a dedicated circuit?

A 250 W lamp draws about 2.1 A at 120 V, so four fit comfortably on one 15 A circuit. Larger banquet units above 800 W should have their own circuit.
