Fixed vs Adjustable Height Heat Lamps: Which to Install

Short answer: adjustable-height lamps suit operations with changing menus or varying pan depths, while fixed lamps suit a consistent menu and are more robust over time. Either way, set the height once — typically 30-60 cm above the food — and record it, because an unrecorded height drifts with staff turnover. Options include adjustable and fixed models in our heat lamp range.

Comparison

The trade-off is flexibility against robustness. Adjustable mechanisms add a moving part that needs tightening; fixed mounts remove that failure point but lose versatility.

Factor	Adjustable	Fixed
Height range	Typically 25-70 cm	Set at installation
Suits changing menus	Yes	No
Moving parts	One or two per lamp	None
Drift risk	Height changes over time	None
Installation complexity	Simple	Needs measuring first
Cost	+10-30%	Baseline
Best for	Multi-use kitchens	Dedicated stations

Height drift is the hidden cost of adjustability. Without a recorded setting, each new member of staff moves the lamp to what looks right, and holding temperature becomes unpredictable across shifts.

Fixed installation is not necessarily permanent. A wall or ceiling bracket can be repositioned, but it requires a tool and a decision, which is exactly the friction that keeps a calibrated setting stable.

Setting the height

Commissioning takes about 15 minutes per lamp and removes most temperature complaints. Do it once, record it, then verify quarterly.

Step	Action	Target
1	Start at the chart height for the wattage	30-45 cm for 250 W
2	Load a pan of product at 70°C	Preheated food
3	Wait 15 minutes with the lamp on	—
4	Read surface temperature at three points	60-70°C
5	Adjust by 5 cm and re-read if needed	—
6	Mark the height and log it	Visible record

Mark the setting physically, with a tape mark or an engraved line on the stem. A written log in a folder is useful for audits, but a mark on the lamp is what actually prevents drift.

Measure at the food surface with an infrared thermometer, not in the air. Air under a lamp reads far higher than the product, which leads operators to raise the lamp and unintentionally drop the food out of the safe zone.

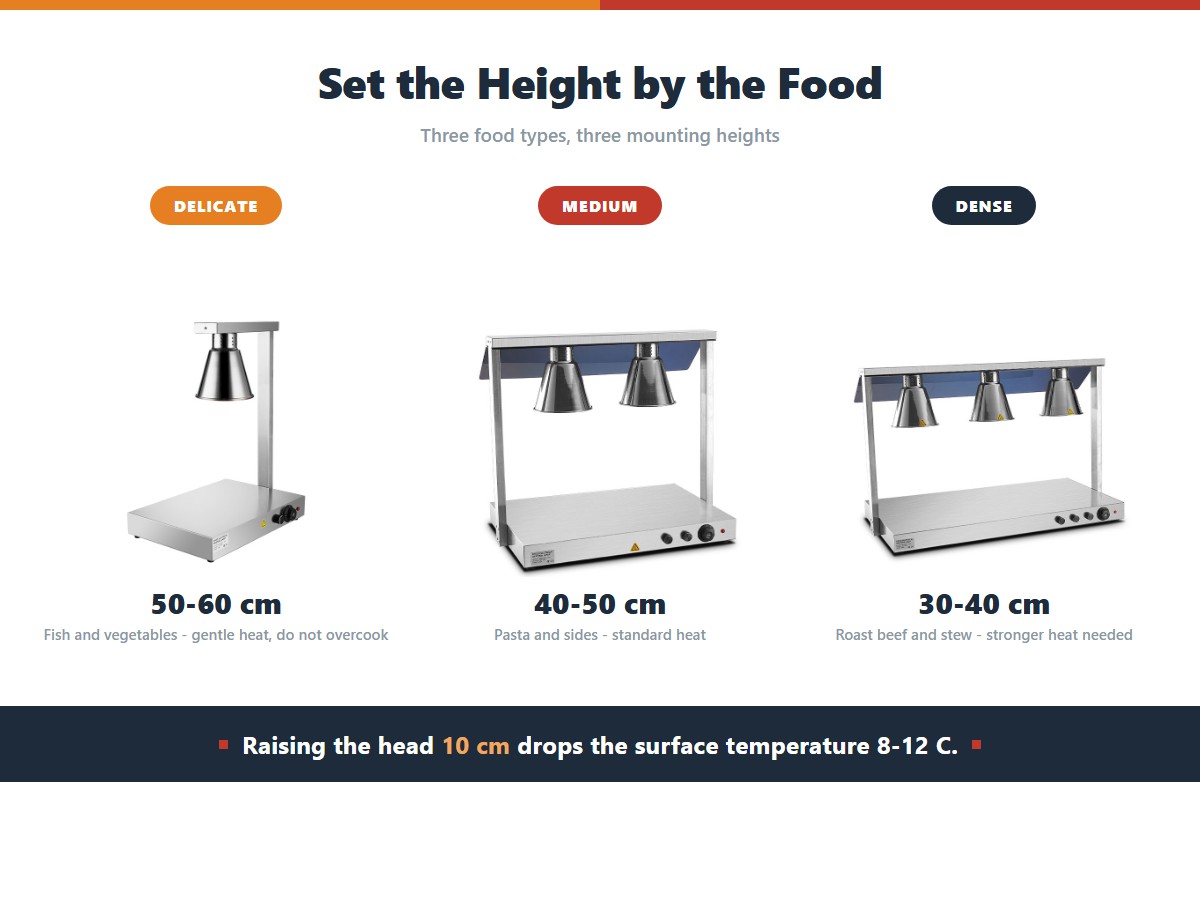

Choosing by station type

Different stations have different needs, and a single answer rarely fits a whole kitchen.

Station	Recommendation	Reason
Dedicated fry holding	Fixed at 35-40 cm	Consistent product and pan
Carving station	Adjustable	Pan depth varies with the joint
Breakfast line	Fixed per position	Repetitive menu
Multi-use pass	Adjustable	Menu changes daily
Deli hot case	Fixed	Same products every day
Event catering	Adjustable	Different venues each time
Ceiling-mounted island	Fixed, installed by an electrician	Safety and stability

Event caterers should always choose adjustable. The next venue will have different counter heights and different pans, and a fixed lamp cannot accommodate that.

Mounting, clearance and safety distances

Height adjustment is only useful if the mounting point is right. A lamp needs clearance above it for heat to escape, clearance below it for the tallest pan, and lateral clearance so staff can reach in without touching the shade. Adjustable models add a carriage and a locking collar, which need more headroom than a fixed stem.

Installation	Height above food	Clearance above lamp	Minimum side clearance	Typical fixing
Fixed counter stem lamp	30-45 cm	25 cm	15 cm	Bolted base plate
Fixed overhead bar	45-60 cm	30 cm	20 cm	Ceiling or gantry bracket
Adjustable counter lamp	25-60 cm (sliding)	35 cm	20 cm	Bolted base plus collar lock
Adjustable overhead bar	40-75 cm (sliding)	40 cm	25 cm	Ceiling track or cable

Check the tallest item you will ever place under the lamp — usually a stock pot or a GN 1/1 pan at 200 mm with a lid propped open — and set the lowest stop of an adjustable lamp above that by 10 cm. If the lowest setting is below that point, staff will eventually lower it into contact with food.

Frequently Asked Questions

Can I convert a fixed lamp to adjustable?

Sometimes, using a manufacturer's retrofit kit. Verify the load rating of any replacement stem before fitting it, since the lamp head is heavy.

How often does an adjustable lamp drift?

Usually after cleaning or a change of staff. Monthly verification catches it, and a physical height mark prevents it in most cases.

Does height affect energy use?

Not directly. A lamp draws its rated wattage regardless of height, but a badly positioned lamp wastes that energy heating the wrong surface.

What is the minimum clearance above food?

Around 25-30 cm for a 100-250 W lamp. Closer than that scorches the surface and can exceed the manufacturer's clearance to combustibles.

Should ceiling lamps be adjustable?

Rarely. They are installed for a defined counter height and should be fixed securely; adjustability at height is a safety and maintenance complication.
