Plug Types and Voltages for Export Buffet Equipment

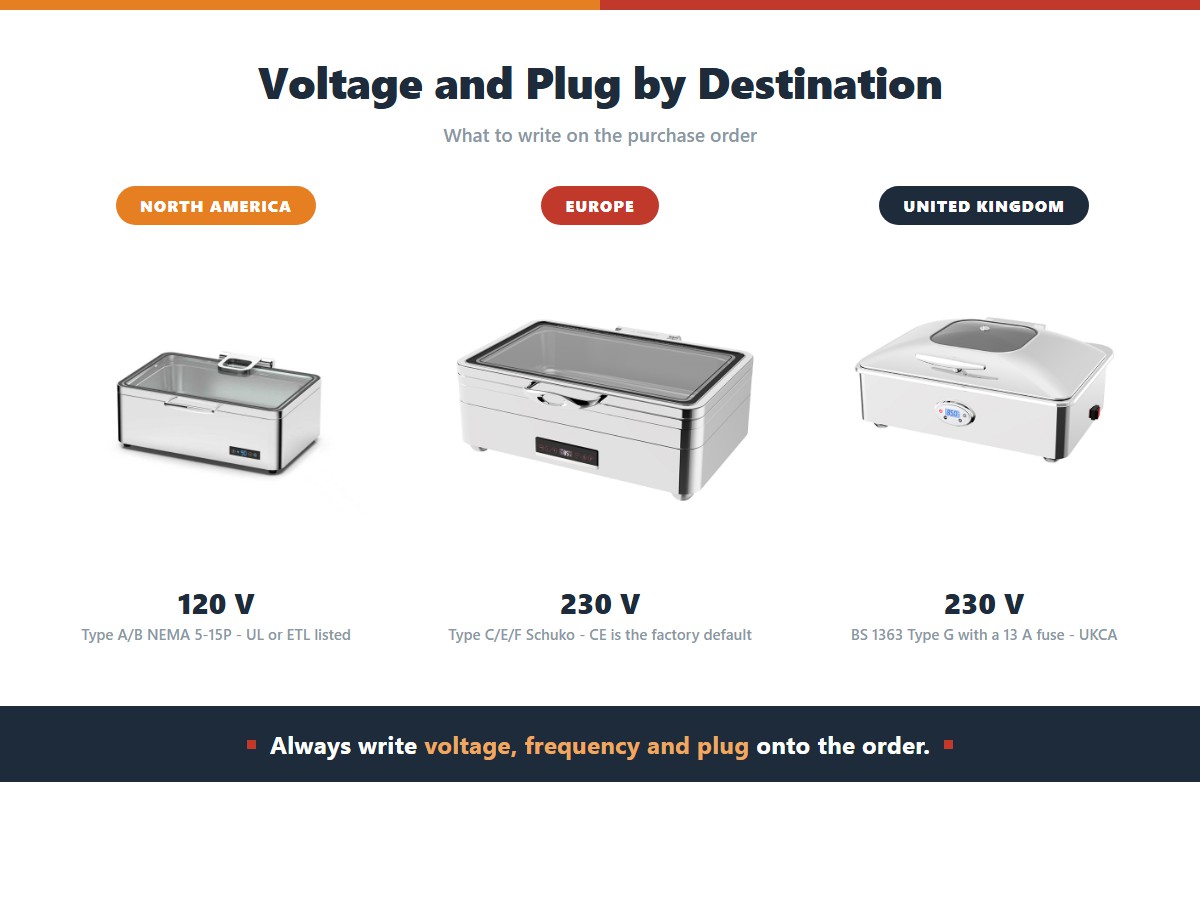

Short answer: specify voltage and plug type at the time of order: 120 V / 60 Hz with Type A or B for North America, 230 V / 50 Hz with Type C or F for most of Europe, 230 V with Type G (BS1363) for the UK and Ireland, and 230 V with Type I for Australia and New Zealand. Getting this wrong means unusable equipment on arrival. Confirm requirements when ordering any electric chafing dish.

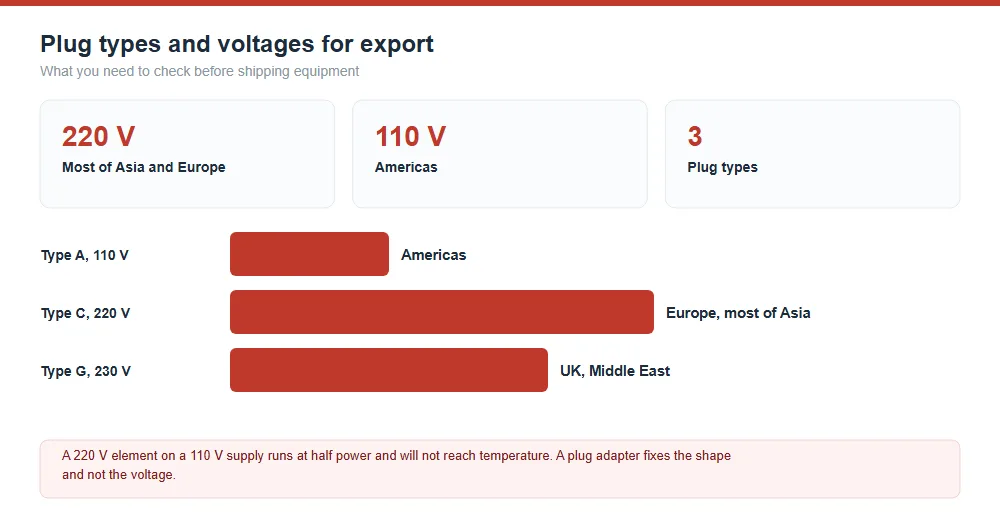

Region-by-region specification

Four specifications cover the vast majority of export destinations. Confirm the exact requirement for your market before production rather than at delivery.

Japan's 100 V supply is the one that most often causes problems, because equipment rated for 120 V runs measurably cooler. For holding equipment, that can mean failing to reach temperature, so specify a Japan-specific rating.

Brazil and a few other markets have regional voltage differences within the country. Confirm the destination city rather than assuming the national standard.

Voltage, frequency and what each affects

Voltage and frequency are not interchangeable problems. Understanding which component cares about which is useful when diagnosing a specification issue.

Resistive heating elements are tolerant of frequency differences, which is why 50/60 Hz is often written as a range on the rating plate. Motors, timers and digital controls are less tolerant and should be checked.

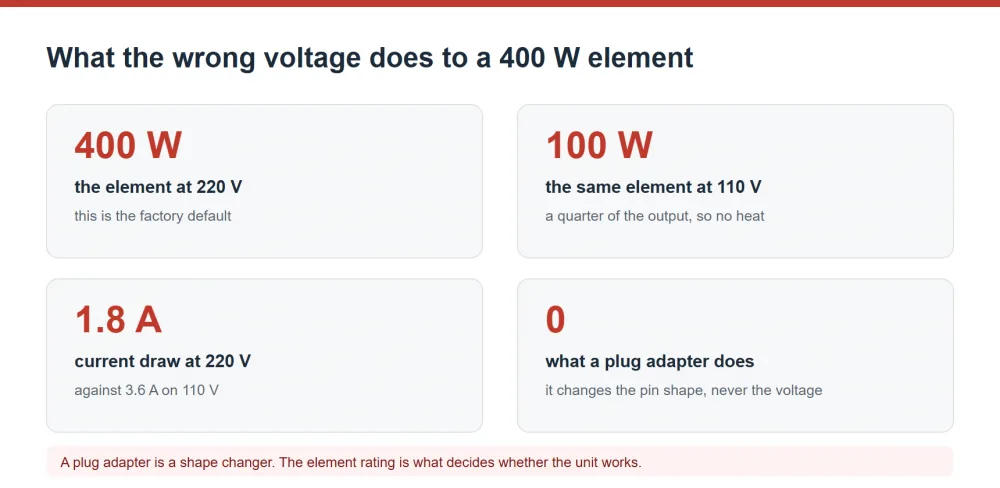

Under-voltage is the quiet failure. A 230 V chafer plugged into 120 V appears to work, warms slightly and never reaches holding temperature, which is often misdiagnosed as a faulty thermostat.

Ordering and verification

A few checks at the order stage prevent the most common and most expensive export mistakes.

Dual-voltage equipment with a selector switch costs a little more and removes the risk entirely for distributors who may resell into a different market. It is worth specifying if there is any uncertainty.

Documentation to request before shipment

Most export problems are documentation problems, not product problems. Asking for these six items at order stage costs nothing; discovering a mismatch after the container lands means adaptors, re-testing, or equipment that cannot legally be plugged in.

Photograph the rating plate on arrival and file it with the purchase order. When a replacement element is needed two years later, the plate photo is usually the fastest way to identify the correct part.

Frequently Asked Questions

Can I use a travel adapter on commercial equipment?

No. Adapters do not change voltage, and they are not rated for continuous commercial loads or for use in a professional kitchen.

Do I need a transformer for 230 V equipment in the USA?

Yes, or buy 120 V equipment. A step-up transformer must be rated for the continuous load with margin, which makes buying the correct voltage cheaper.

Is 220 V the same as 230 V or 240 V?

Functionally yes. Most equipment rated 220-240 V operates across that range, but confirm the tolerance on the rating plate.

What happens if I run 230 V equipment on 120 V?

It produces roughly a quarter of its rated power. A chafer will warm slowly and fail to hold temperature, and a lamp will glow dimly.

Should I stock both voltages?

For distributors, yes if you serve multiple markets. For a single-site operator, order once for the correct market.
