How Far Should a Heat Lamp Hang Above the Food?

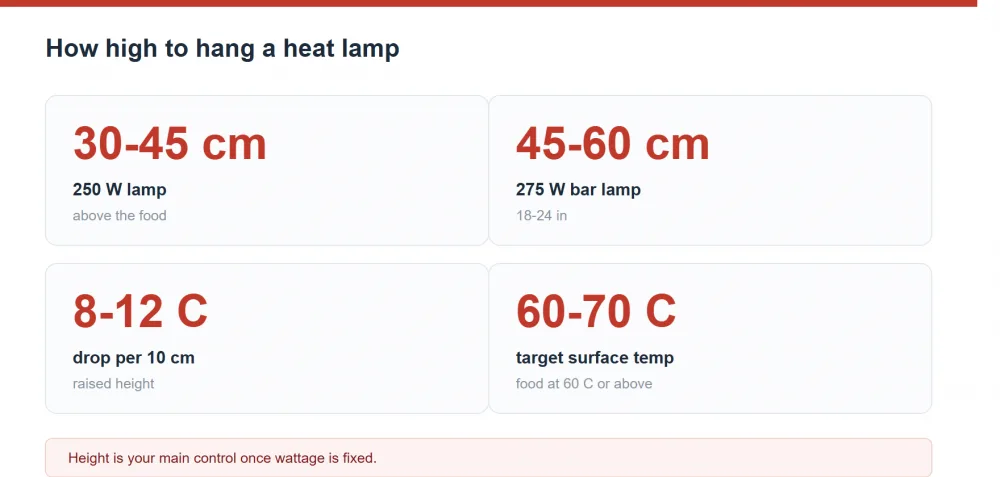

Short answer: hang a 250 W lamp 30-45 cm (12-18 in) above the food surface and a 275 W bar lamp 45-60 cm (18-24 in) above it, then adjust until an infrared thermometer reads 60-70°C at the food surface. Raising a lamp by 10 cm typically drops surface temperature by 8-12°C, so height is your main control once wattage is fixed. Start from the chart below and fine-tune with our commercial food heat lamps.

Height by wattage and lamp type

These ranges assume still air, food in a metal or ceramic pan, and a target surface temperature of 60-70°C with the food itself at or above 60°C.

Lamp	Power	Recommended height	Coverage diameter	Best application
Single head, incandescent	100 W	20-30 cm	30-40 cm	Pastries, plated holding
Single head, infrared	250 W	30-45 cm	40-50 cm	Fried food, carved meat
Twin head	2 x 250 W	40-55 cm	70-90 cm	Two-pan carving station
Triple head	3 x 250 W	45-60 cm	90-110 cm	Buffet line, three pans
Bar / strip infrared	275 W per group	45-60 cm	100-130 cm	Long counters, pass-through
Ceiling mounted	500-1000 W total	70-90 cm	110-150 cm	Fixed buffet islands

Tuning height against symptoms

Rather than guessing, read the food. The table below maps what you see to the adjustment that fixes it, which is faster than recalculating wattage.

Symptom	Likely cause	Adjustment	Expected result
Surface below 55°C after 15 min	Lamp too high or wattage too low	Lower by 5-8 cm	+5-9°C at surface
Edges dried, centre cool	Uneven coverage, lamp off-centre	Recentre and raise 3-5 cm	Even temperature across pan
Top scorched, middle warm	Lamp too close	Raise 8-12 cm	Slower, more even heating
Fried food goes soft	Moisture trapped under the cover	Vent the cover, raise slightly	Crispness holds 15-25 min
Bulbs burning out in weeks	Vibration or over-voltage	Check voltage, tighten fittings	Bulb life back to 5,000 h

Measure at the food surface, not in the air. Air temperature under a lamp can read 20°C higher than the food itself, which leads operators to raise the lamp and unintentionally drop the food out of the safe zone.

Clearance and safety limits

Manufacturers publish a minimum clearance to combustible materials, typically 30-45 cm for countertop units and 60 cm or more for ceiling-mounted fixtures. Keep that clearance from any shelf, banner or decorative panel above the lamp — heat rises and the failure mode is a scorched surface rather than a fire, but it is still a write-off. For ceiling units, check that the mounting point carries at least four times the fixture weight, since a bar lamp with its cable and shade can exceed 15 kg.

Setting height during commissioning

Height should be set once, recorded, and then verified rather than guessed each service. The commissioning routine below takes under 15 minutes per lamp and removes most ongoing temperature complaints.

Step	Action	Target reading	If out of range
1	Set lamp to the chart height	—	—
2	Load a pan of product at 70°C	—	Preheat food first
3	Wait 15 minutes, lid off	—	—
4	Read surface at three points	60-70°C	Adjust 5 cm
5	Read food core temperature	≥ 60°C	Lower lamp or raise thermostat
6	Record height and reading on the log	—	Re-check quarterly

Record the height in centimetres on the equipment label itself. Staff turnover is the main reason a correctly commissioned lamp drifts out of specification within a season.

Frequently Asked Questions

Should the lamp be directly above the food or slightly off to one side?

Directly above. Infrared travels in straight lines and does not convect like a oven, so an off-centre lamp creates a hot spot on one edge and a cold zone on the other.

Can I hang two lamps over one long counter?

Yes. Space them so their coverage circles overlap by about 10-15% — overlapping too much doubles the heat in the middle and dries it out, while a gap leaves a cold patch.

Does the height change for different foods?

Slightly. Dense items like mashed potato or a roast tolerate lower placement; delicate fried foods and pastries need more distance and usually a lower wattage so the surface does not colour further.

What about a lamp over a sneeze guard?

Mount inside the guard where possible. A lamp outside glass loses 10-20% of its output to reflection and the glass itself can heat enough to be a burn risk.

How often should I re-check the height?

After any change to pan type, portion depth or menu, and at least quarterly as part of temperature-log verification. Bulbs also lose output gradually, so a lamp that was correct in January can be marginal by autumn.
